3D printer motor with high torque
59Ncm(83.6oz.in) holding torque
NEMA 17 bipolar 1.65"x1.65"x1.85" 4-wire
Build with 1m Cable and 0.1" pitch Connector
Rated current 2.0A & resistance 1.4ohms

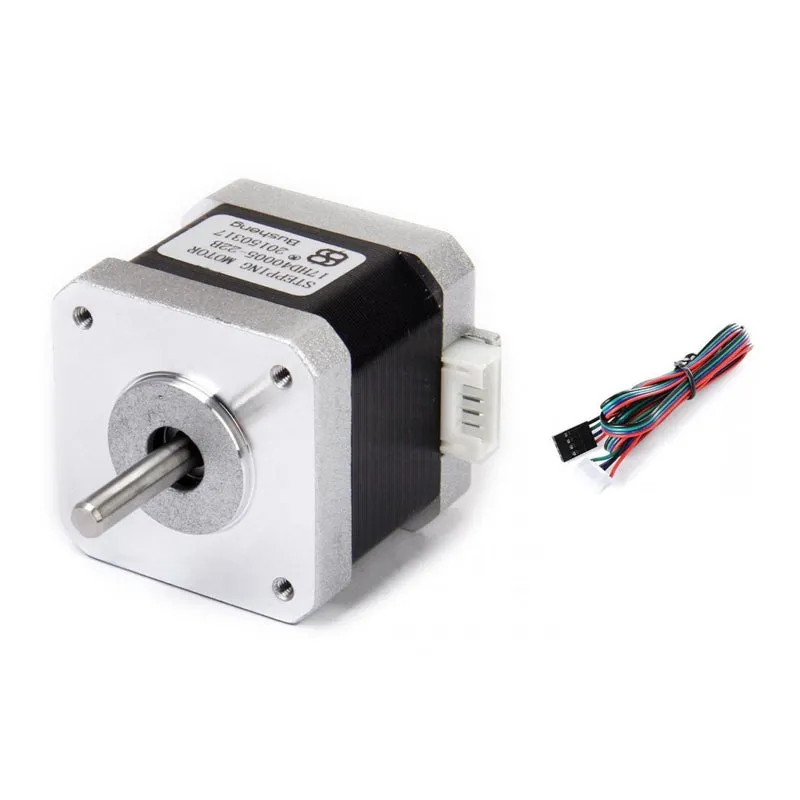

Stepper Motor – 1.5A – 34mm is the most popular motors used to build 3D printers, milling machines, plotters and other electronically controlled devices.

Technical data

• Dimensions: 42mm x 42 mm x 34 mm (L x W x W)


• Movement angle: 1.8 degrees


• Resistance / phase: 1.5Ω


• Current / phase: 1.5 A


• Holding torque: 0.22 Nm


• Inductance / phase: 2.8 mH


• Weight: 0.22 kg


• Diameter of the shaft 5mm
