Description

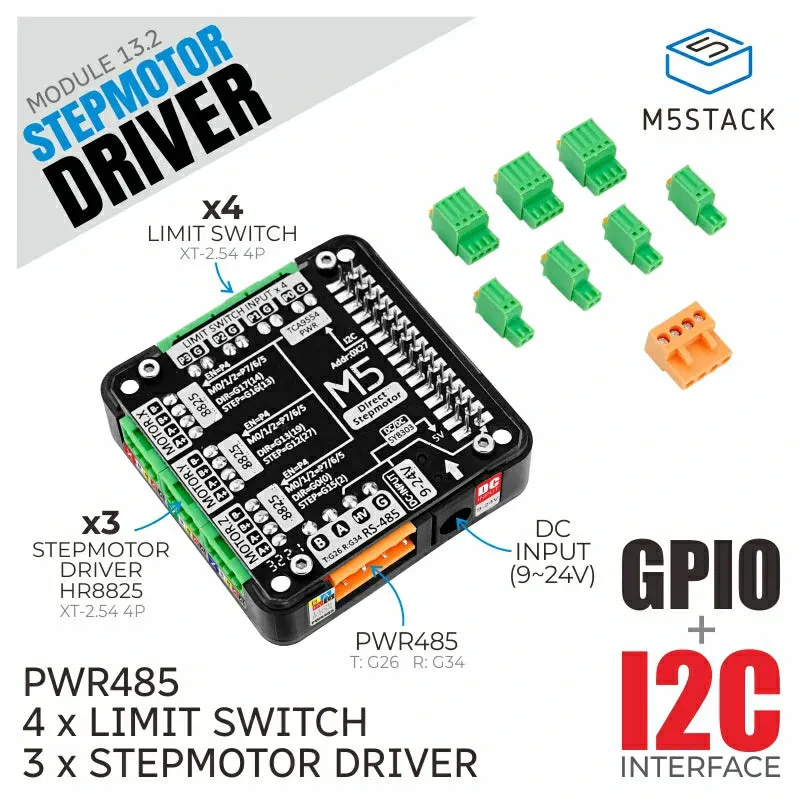

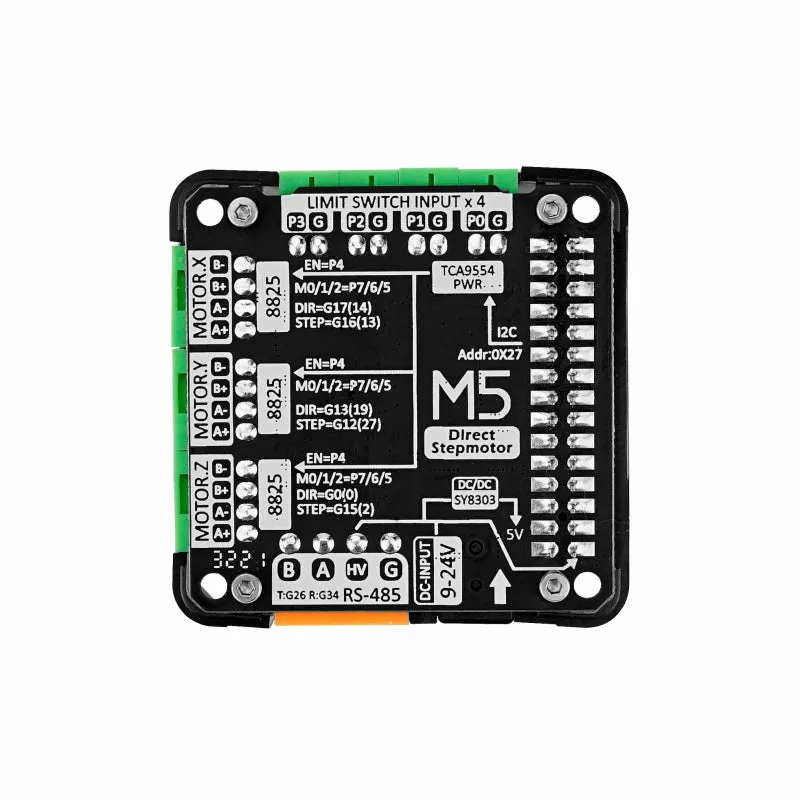

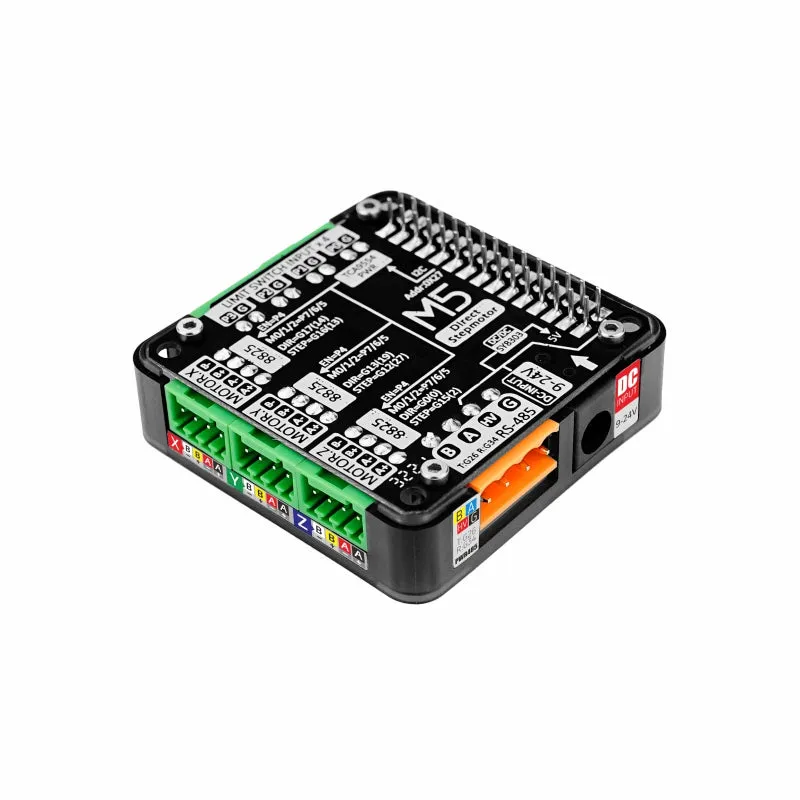

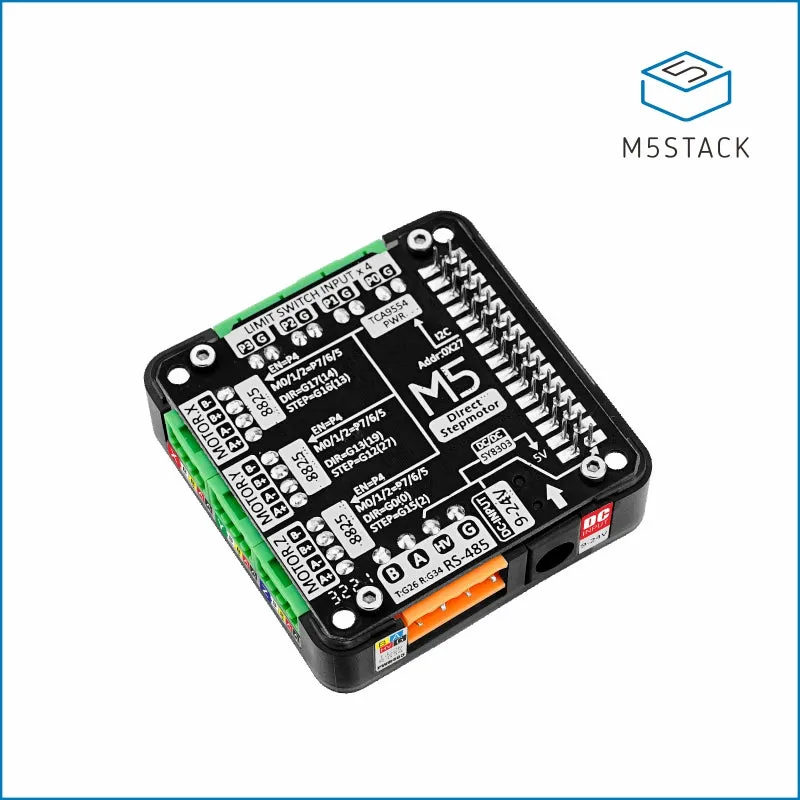

StepMotor Driver is adapted to M5 core series, the HR8825 chip solution provides a 3-way bipolar stepper motor control interface. You can implement independent control or multi-axis motor linkage after this module is stacked with M5 core series of the internal ESP32 generates signals directly to the driver chip.

This module integrated TCA9554 IO expansion chip provides 4 sets of input signal terminals 3 sets of stepper motor subdivision control 1 set of drive chip enable control, through the I2C interface control, can monitor and control the 8 expansion IO state, as well as for external limit switch, dynamic subdivision adjustment, motor braking. Integrated PWR485 communication interface (RS485 9-24V power input) and DC-JACK, which can be used for communication and more flexible power supply. Download the UIFLOW and you're ready to go!

With ESP32-GRBL firmware, web control. It can be easy to configure signal output and very useful when you need to position something very accurately. such as:printers, robotic arms, etc.

Note:
It is forbidden to plug or unplug the motor when it is powered on. All operations should be performed after the device is powered off to avoid damage to the module.

Product Features

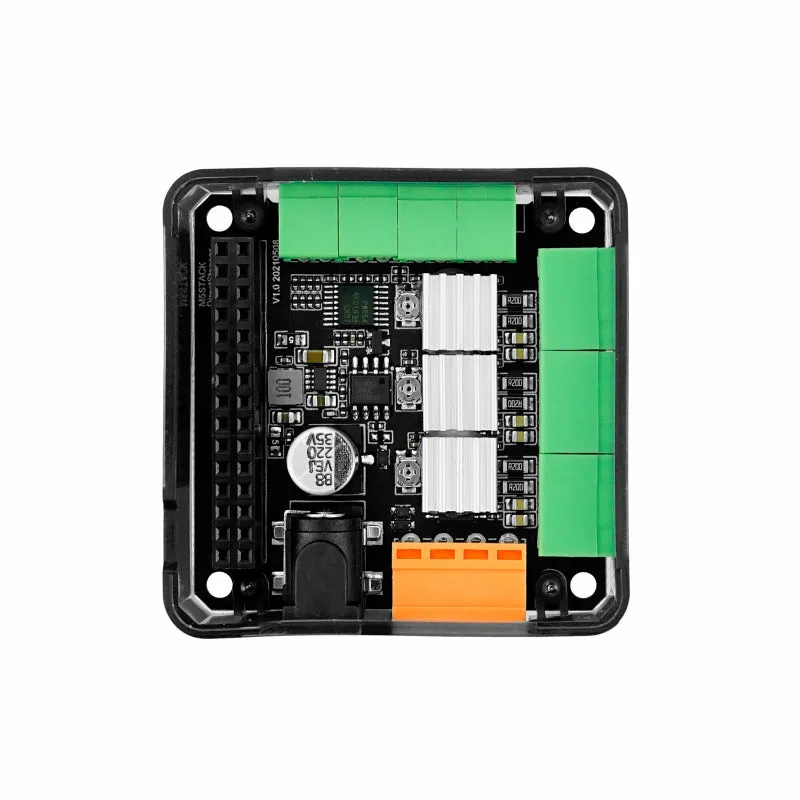

Three-axis HR8825 stepper motor driver
Suitable for bipolar stepper motors
With current regulating potentiometer per circuit, drive current up to 1.5A
Support various subdivision modes, up to 1/32 STEP subdivision
Multiple signal input interfaces
PWR485 communication interface (RS485 9-24V power input)
DC-JACK terminal input (9-24V)
Built-in DCDC, integrated 9-24V to 5V circuit
Development platform.
- Arduino, UIFlow

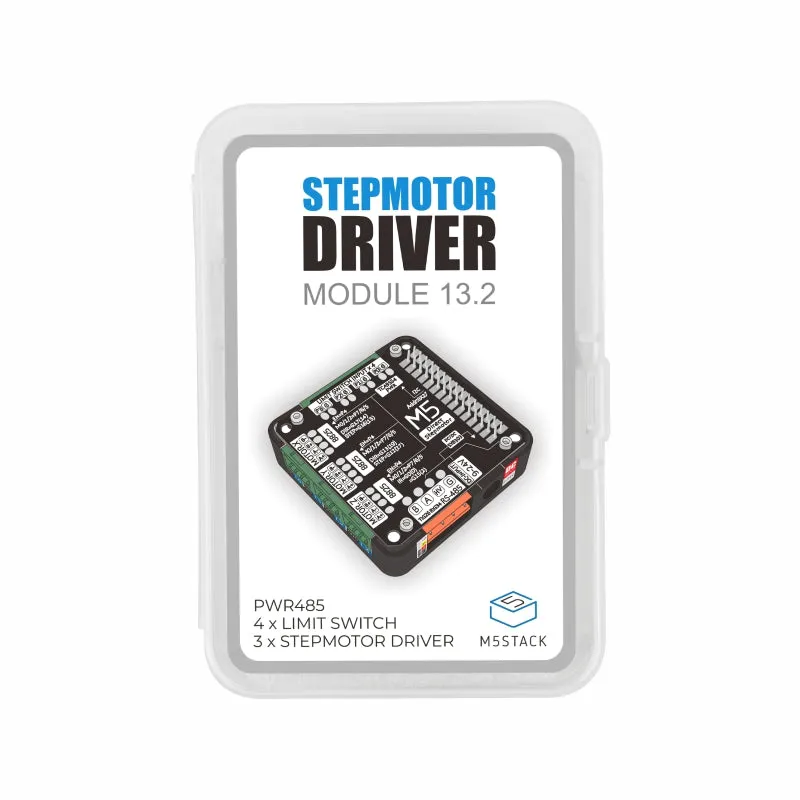

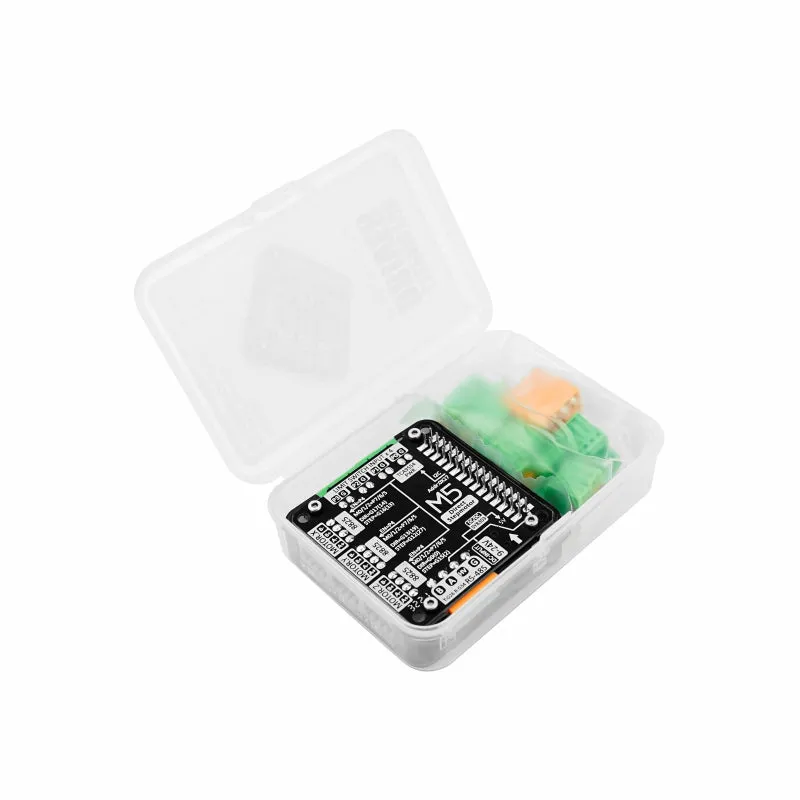

Included

1x StepMotor Driver
4x 2.54-2P terminals
3x 2.54-4P terminals
1x 3.96-4P terminals

Applications

Printers
Scanners
CNC engraving machine control
Motion Module Control

Similar products comparison

Features	GRBL 13.2 MODULE	STEPMOTOR DRIVER
Control method	I2C communication	Pulse signal
Firmware program	Onboard STM32, built-in GRBL firmware	No firmware, can be driven by ESP32 direct signal
Number of modules that can be stacked	2	1
Driver IC	DRV8825	HR8825
Subdivision adjustment	DIP switch	TCA9554 chip control
Interface	3 groups of limit switch interfaces	4 groups of custom signal input interfaces RS485 communication interface

Specifications

Specifications	parameters
Stepper motor driver chip	HR8825
IO Expansion Chip	TCA9554
Support for segmentation	FULL、1/2、1/4、1/8、1/16、1/32
Maximum drive current per channel	1.5A
Input Signal Terminal Specifications	2.54-2P
Motor terminal specifications	2.54-4P
RS485 terminal specifications	3.96-4P
Net weight	40g
Gross weight	60g
Product Dimensions	54.2 * 54.2 * 13.2mm
Packaging size	95 * 65 * 25mm
