The 5V DC 28BYJ-48 Stepper Motor with a standard interface, when used directly pluggable. It is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.
The 28BYJ-48 Stepper Motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5 wires. As stated before the pack contains a ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, to drive the 28BYJ-48 Stepper Motor.
If you give the ULN2003 Stepper Motor Driver a certain pulse signal, it will drive the step motor to a certain angle. The control of the Stepper Motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses.
Applications
Robotics: Drives small robotic components and systems.3D Printers: Suitable for precise movement in entry-level 3D printers.
Automated Projects: Used in various DIY and automation projects.
Educational Kits: Commonly used in educational kits for learning about stepper motors and control systems.
Additional Features:
Easy Integration: Simplifies integration with microcontrollers and development boards for quick prototyping.Stepper Motor Control: Allows precise control of the stepper motor’s rotation and position through simple pulse signals.
Versatile Applications: Suitable for a range of projects including robotics, small-scale automation, and educational demonstrations.
Features
- Brand new and high-quality product.
- Stepper motor with a standard interface, when used directly pluggable.
- A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
- Compact-size stepper motor perfect for small robotics applications.
Technical Details
- Rated voltage supply: 5V
- No of phase: 4
- Stride angle: 5.625°/64
- Speed variation ratio: 1/64
- Pull-in torque: 300 gf. cm
- Friction torque: 600-1200 gf. cm
- Self-positioning torque: 34.3mN.m
- In-traction torque: 34.3mN.m (120Hz)
- DC resistance: 50Ω±7% (25°C)
- Insulated resistance: 10MΩ (500V)
- Insulated power: 600VAC/1mA/1s
- Frequency: 100Hz
Physical Attributes
- PCB Length × Width × Height(mm) : 35 × 32 × 10
- Weight (gm): 45
Integration with Arduino
Product Video
Documentation
- ULN2003 Stepper Motor Driver
Package Includes

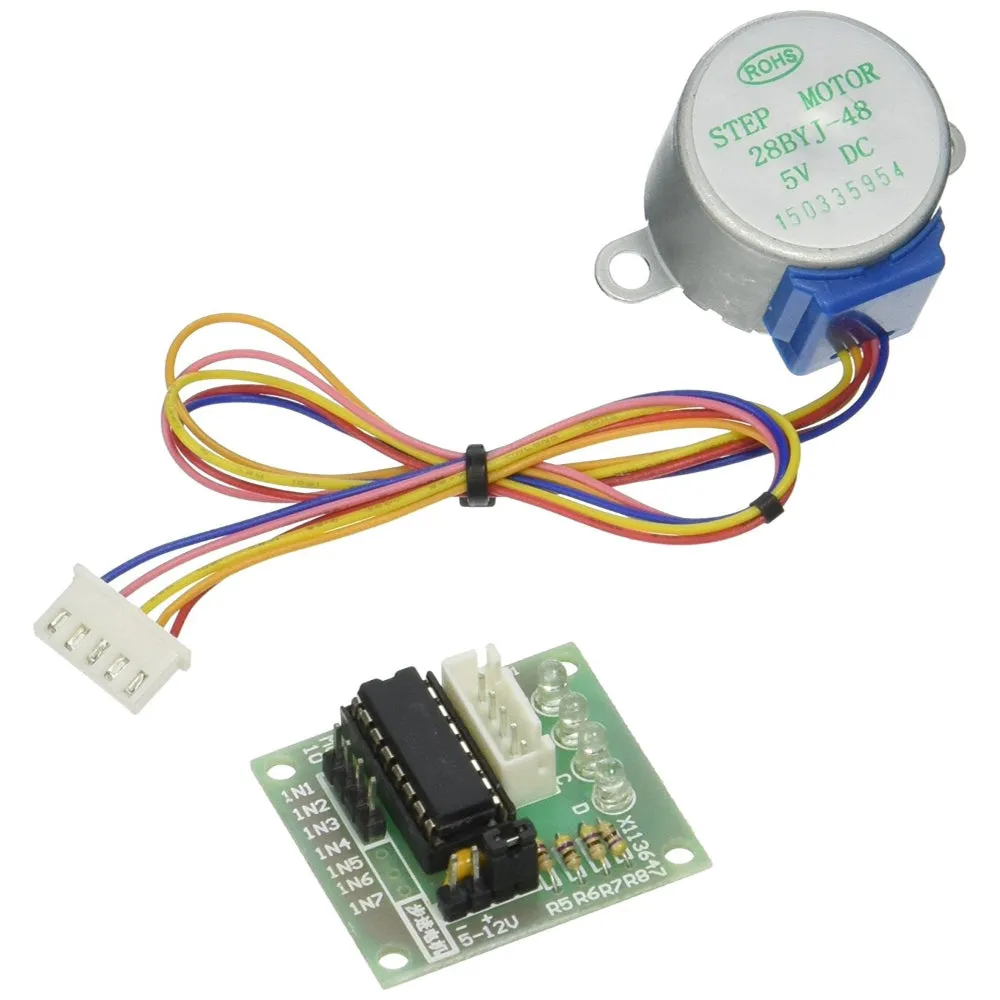

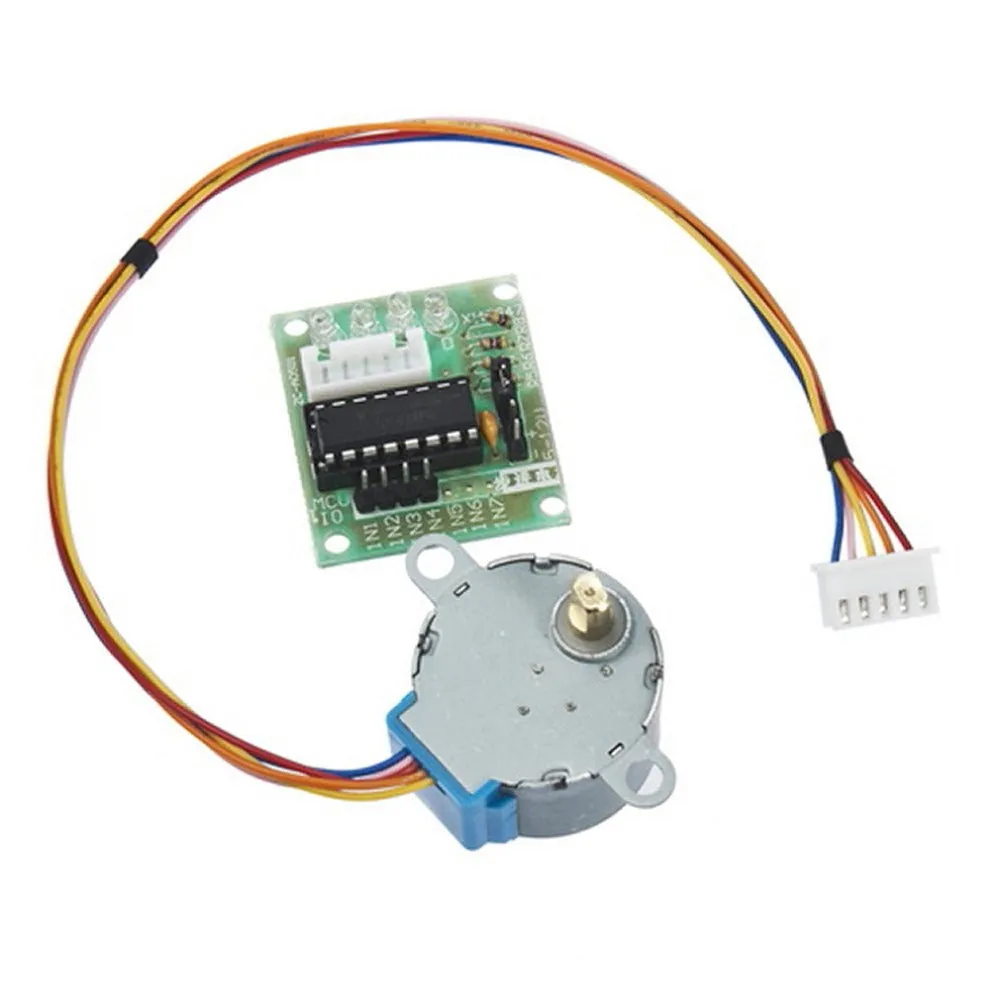

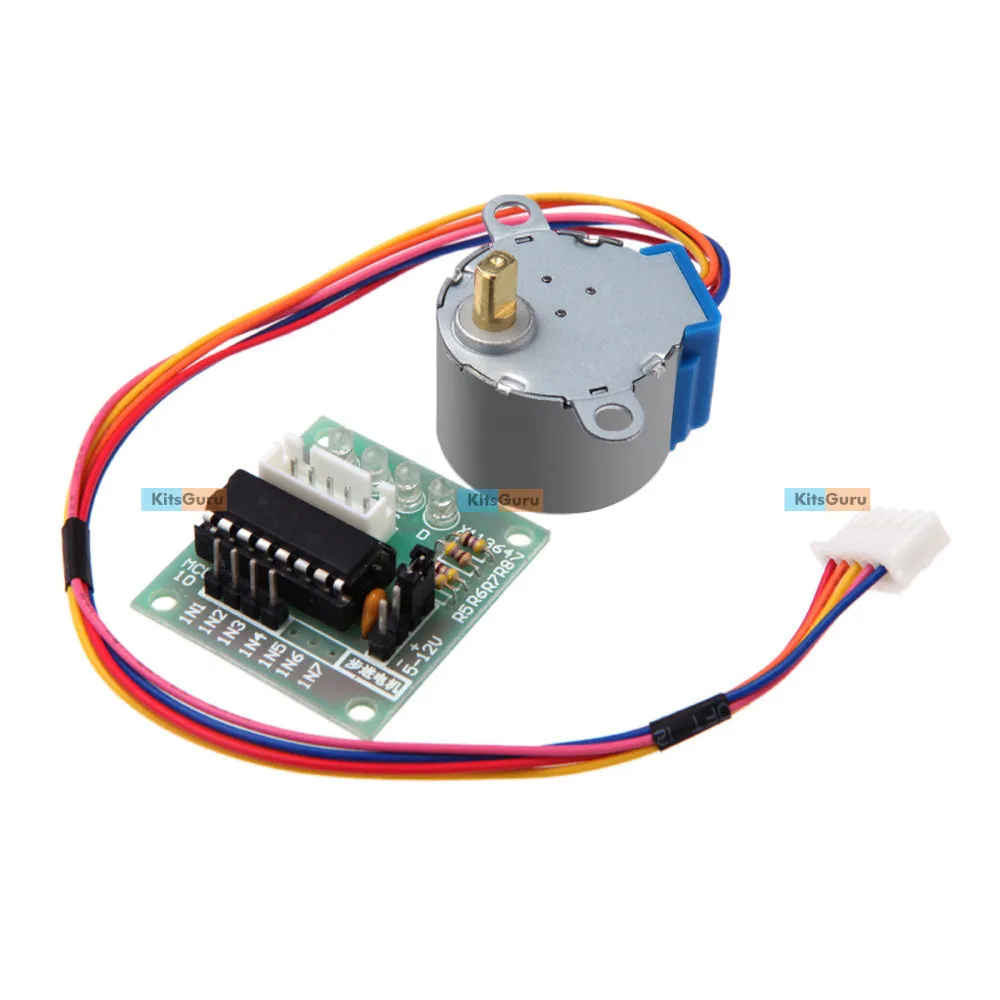

- 1 x 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver
